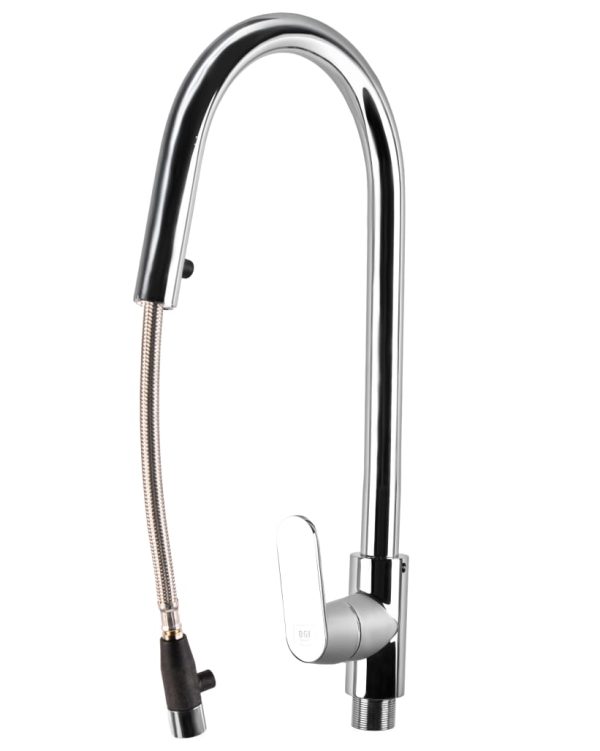

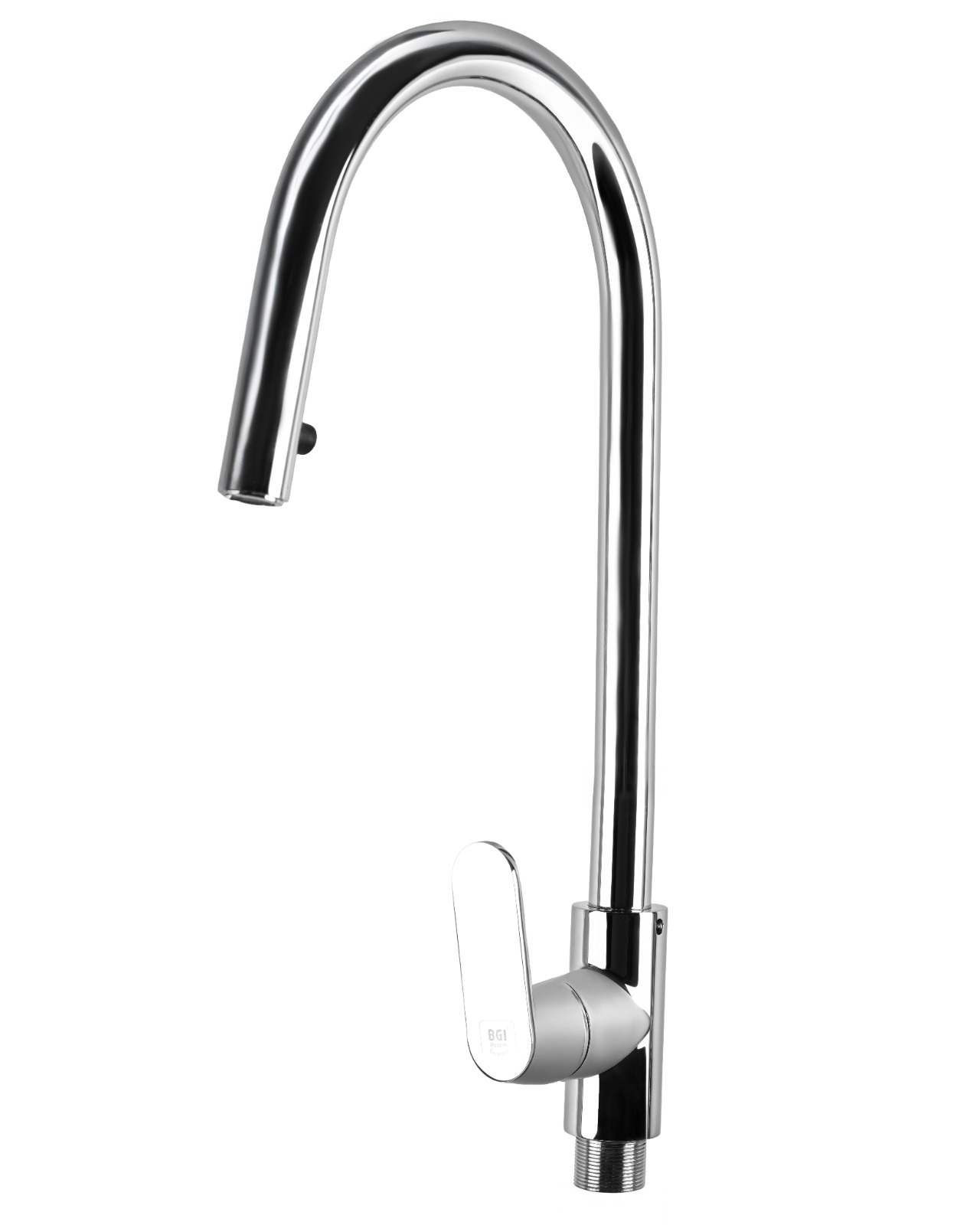

Art.-No.: 3192
Deck-mounted, swivel spout, side lever
Aerator M 24×1
Ceramic cartridge with temperature and water flow control
Flow Rate
- Class A – 13 1/min at 3 bar
- Eco A-7,5 l/min at 3 bar
- Eco B-4,5 l/min at 3 bar
- Eco Custom – 2,5 l/min at 3 bar
-
Material Specifications
-
-
- Low-lead brass (TrinkwV 2015)
- CC7575 for all casted parts in contact with water
- CW617N for all machined and forged parts in contact with water
- Chromium-plated surface: 10-13 μ Nickel, 0,25-0,30 μ Chrome
-
Code Compliance
-
-
- DIN EN ISO 3822
- DIN EN 200
- DIN 4109
- DIN EN 817
- DIN EN 248
- DVGW
- KTW
-
Finish Options
-
- Chrome plated
- Matte Black
-
